Custom Labware 3D Parts

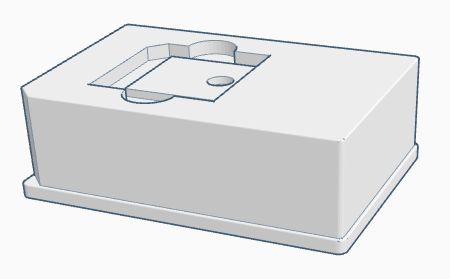

Caliper LabChip GX II SBS-Format Chip Holder
SBS-format plate allows microfluidic chip for Caliper LabChip electrophoresis to be prepared using liquid handling automation system.
Designed for compatibility with Costar microcentrifuge tube (cat no. 3206, 0.65mL prelubricated) for submersion of the chip's capillary "sipper".
Designed by Julie Behr, CBM graduate student, during rotation in Chodera lab, MSKCC.
Available from:
Universal Portrait/Landscape Tecan EVO One-Place MTP Carrier
Single position plate carrier designed such that the center of the plate is at the same position in space with respect to the deck whether the carrier is positioned in a portrait or landscape orientation. The robotic manipulator arm (RoMa) can therefore access plates on this carrier in either orientation after being trained once.
Designed with slots for pins corresponding to Tecan Freedom EVO deck.
Designed collaboratively by John Chodera, MSKCC; Nikki Aldeborgh, research technician in the Kayvan Keshari lab, MSKCC; Sonya Hanson, postdoctoral research fellow in Chodera Lab, MSKCC; and Julie Behr, CBM graduate student, during rotation in Chodera lab, MSKCC.
Available from:

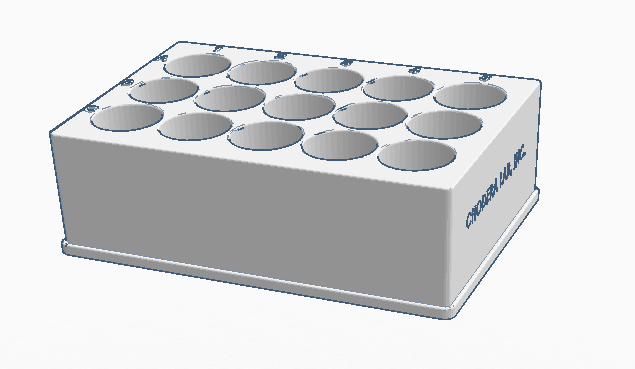

15-Well Vial Holder
SBS-format vial holder for automation or liquid-handling systems.
Designed for -FISHERBRAND VIAL, SCREW THREAD -21X70MM, 4 DR -03-339-21F. Vial, Sample; Fisherbrand; Type I, Class B clear borosilicate glass; Closure: Black phenolic screw cap; Liner: Polyvinyl-faced pulp; GPI thread finish: 18-400; Capacity: 4 dr. (14.8mL); O.D. x L: 21 x 70mm
Designed by Julie Behr, CBM graduate student, during mini-rotation in Chodera lab, MSKCC.
Available from:
96-Well Paper Microzone Plate Holder
SBS-format carrier for patterned paper, for use with 96-well paper microzone plates.
Square-well plate suitable for top and bottom reads with tall wells ensuring light separation on either side of paper slot
Designed by Julie Behr, CBM graduate student, during mini-rotation in Chodera lab, MSKCC.
Available from:
